Automatic Transaxle Unit Components
Automatic Transaxle Unit Components

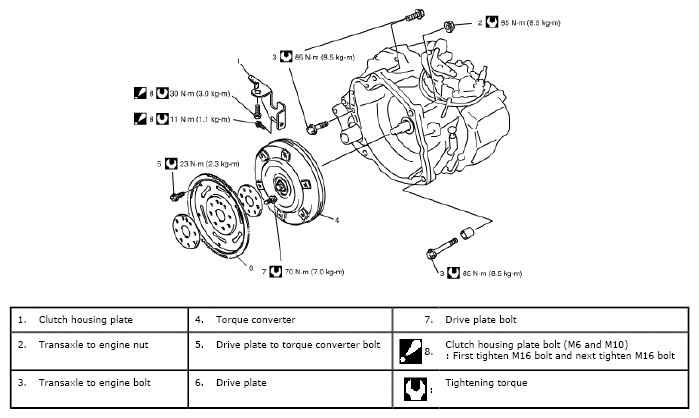

Fig 1: Automatic Transaxle Unit Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
