Forward and Direct Clutch Components
Forward and Direct Clutch Components

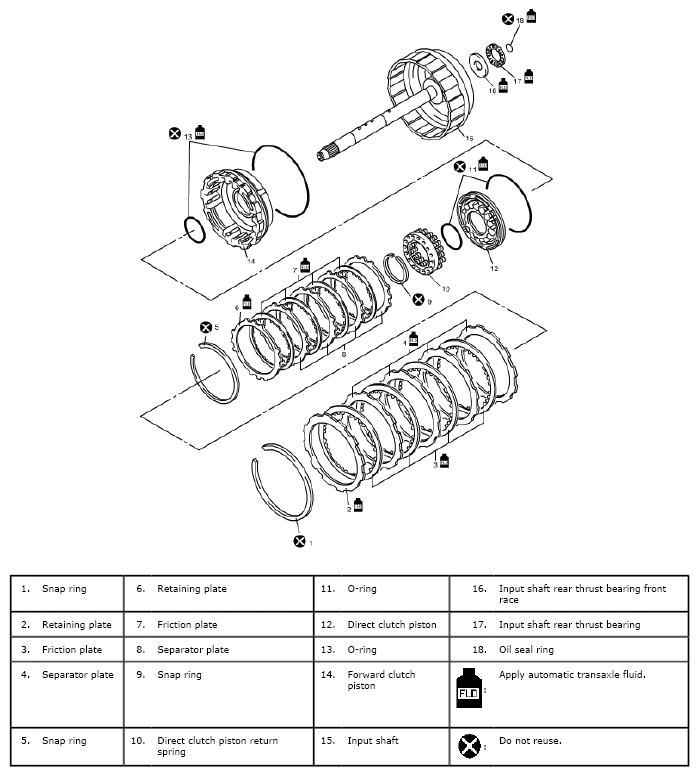

Fig 1: Exploded View Of Forward & Direct Clutch Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
