Rear Door Lock Assembly Components
Rear Door Lock Assembly Components

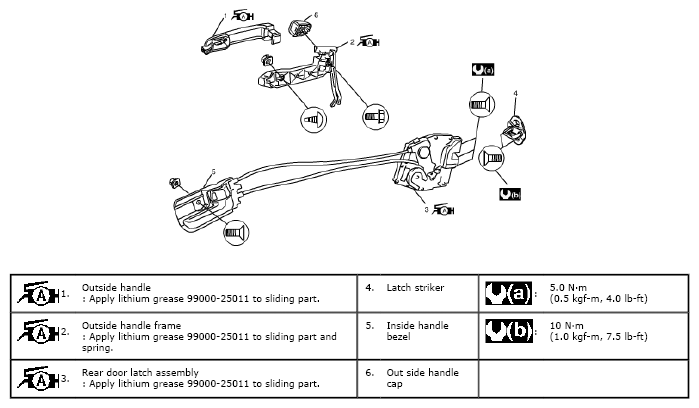

Fig 1: Identifying Rear Door Lock Assembly Components With Tightening Torques
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
