Rear End Door Lock Assembly Components
Rear End Door Lock Assembly Components

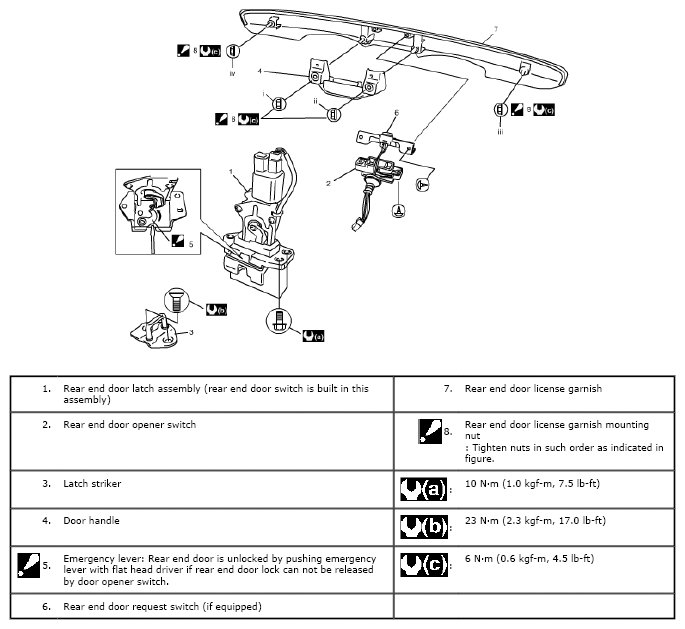

Fig 1: Identifying Rear End Door Lock Assembly Components With Tightening Torque
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
