SX4 Base, Standard
›
Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Schematic and Routing Diagram
›
Ignition System Wiring Circuit Diagram
Ignition System Wiring Circuit Diagram

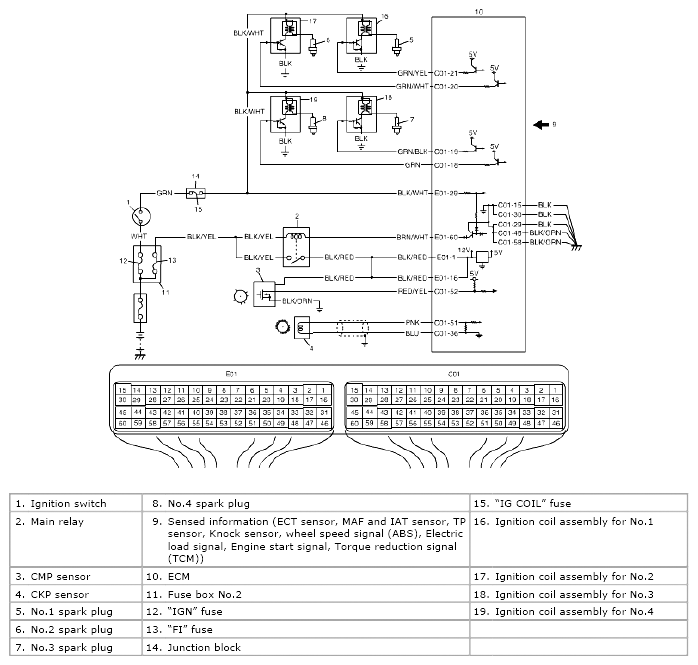

Fig 1: Ignition System Circuit
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
