Gear Shift Shaft Components
Gear Shift Shaft Components

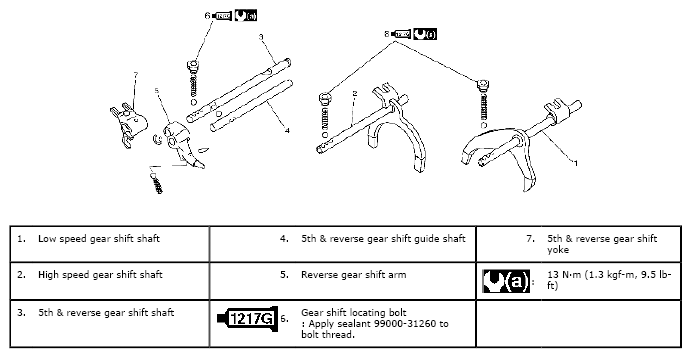

Fig 1: Identifying Gear Shift Shaft Components With Tightening Torque
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
