Engine Compartment

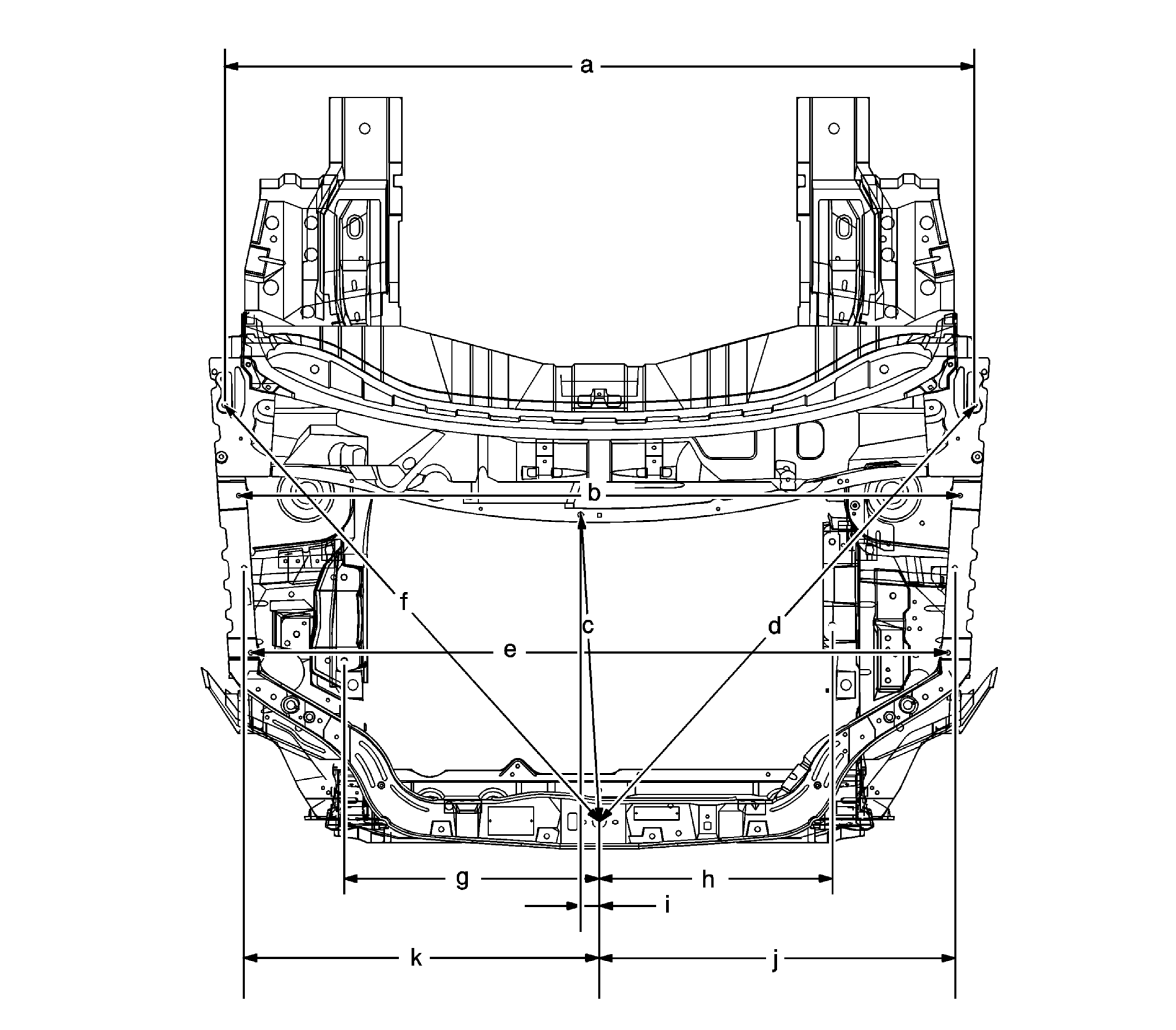

Courtesy of GENERAL MOTORS CORP. Engine Compartment Dimensions
| Points |
Dimensions (mm) |
Dimensions (in) |
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
| A |
1422 |
55.98 |
| B |
1,367 |
53.82 |
| C |
606.0 |
23.86 |
| D |
1,076 |
42.36 |
| E |
1,321 |
52.01 |
