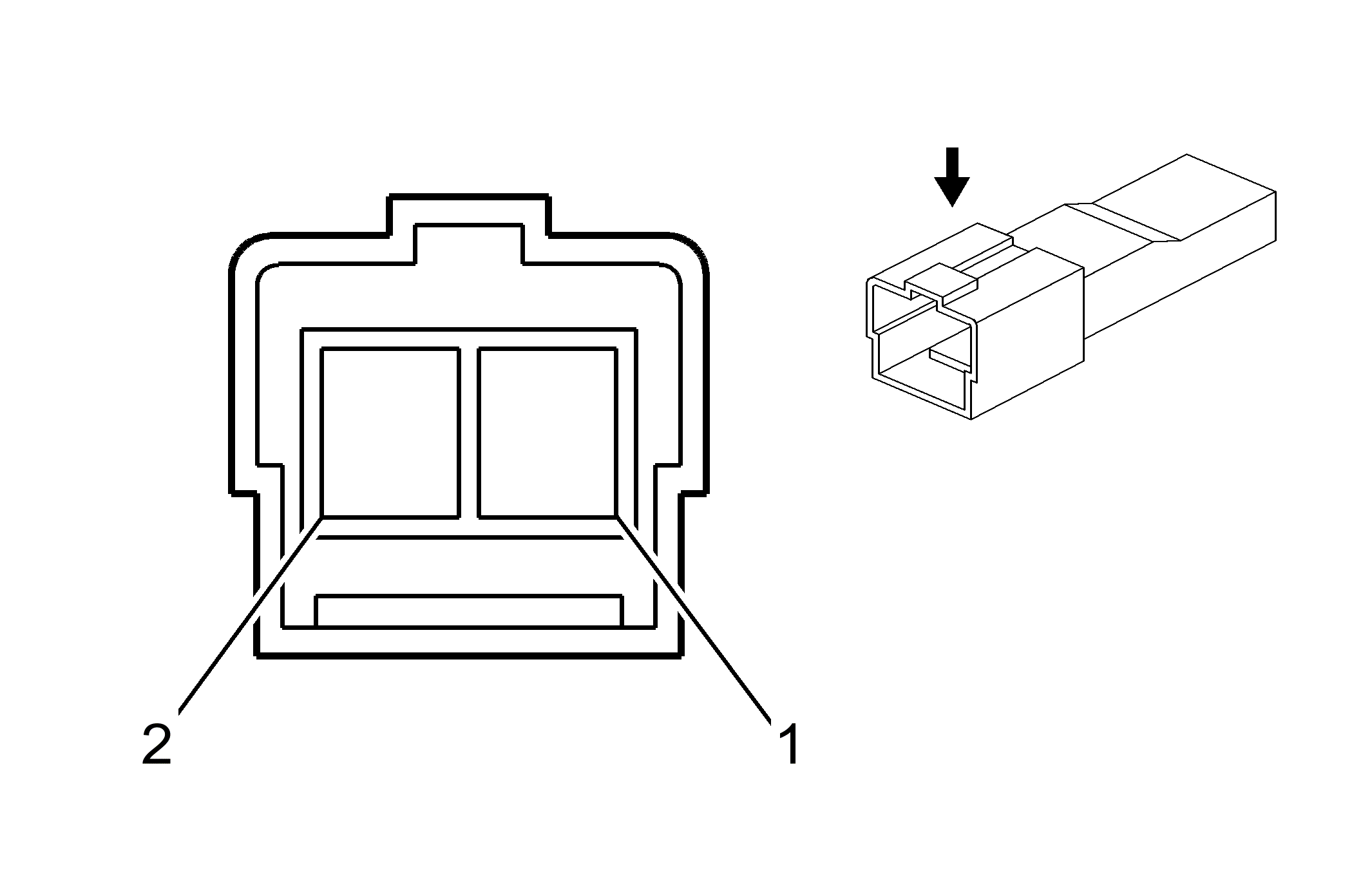

Intake Sensor Connector End View

Intake Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 652630 2-Way M
Pin	Wire Color	Circuit No.	Function
1	BK/YE	-	Intake Sensor Signal
2	D-BU/WH	-	Low Reference
