Shift Lock Control Schematics (Notchback)
Shift Lock Control Schematics (Notchback)

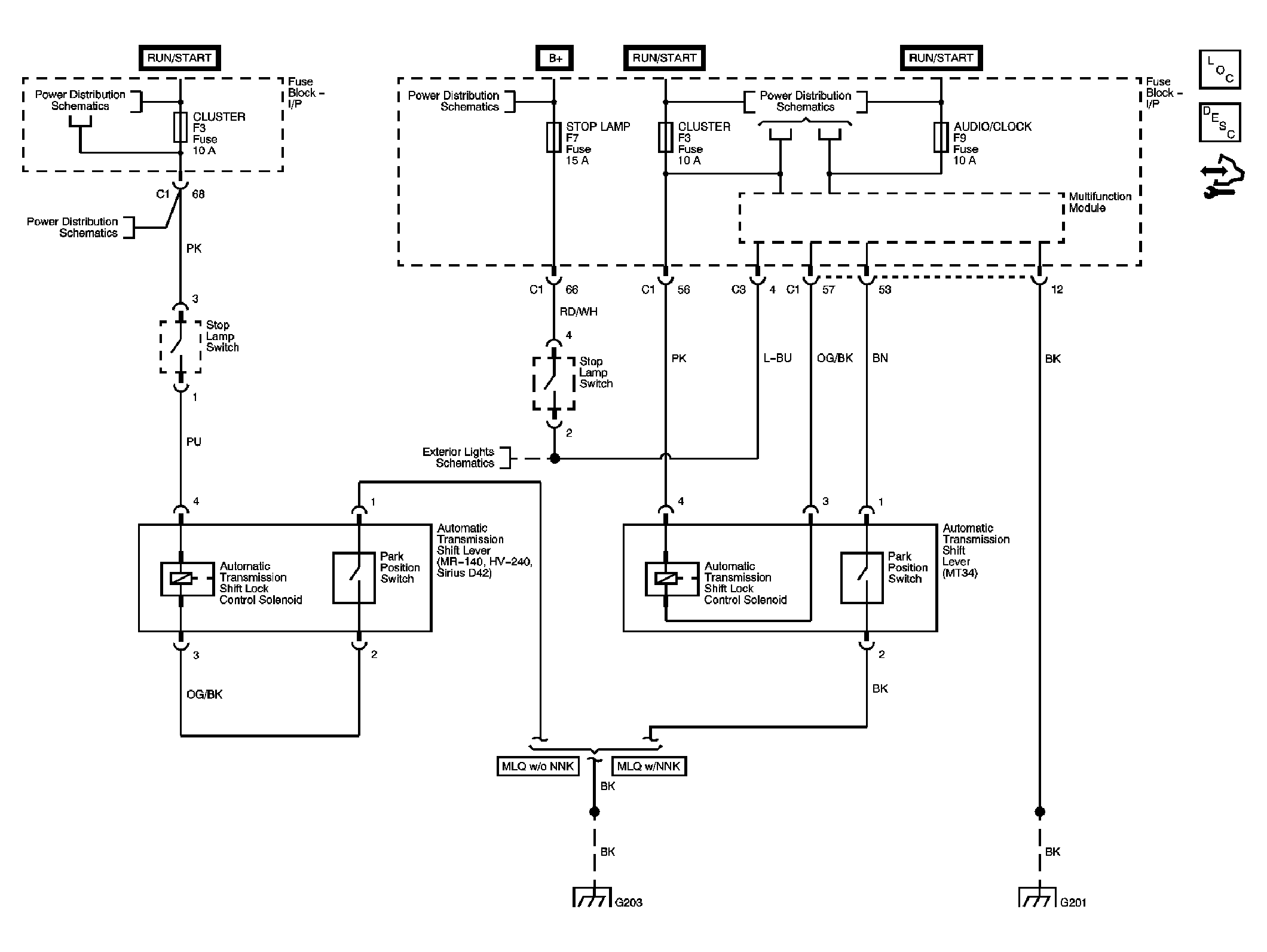

Fig 1: Shift Lock Control Schematic (Notchback)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
