Component Location
›
Steering Column Disassembled View
Steering Column Disassembled View

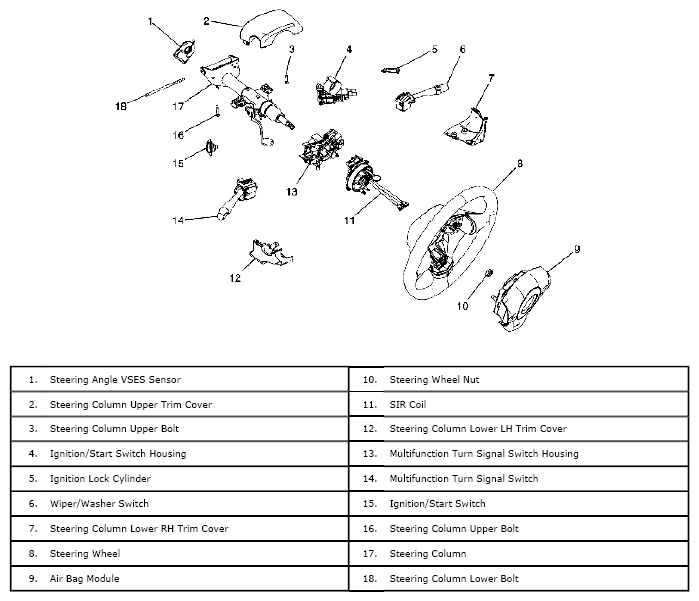

Fig 1: Identifying Steering Column Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
