Component Location
›
Electronic Shift Control System Components Location
Electronic Shift Control System Components Location

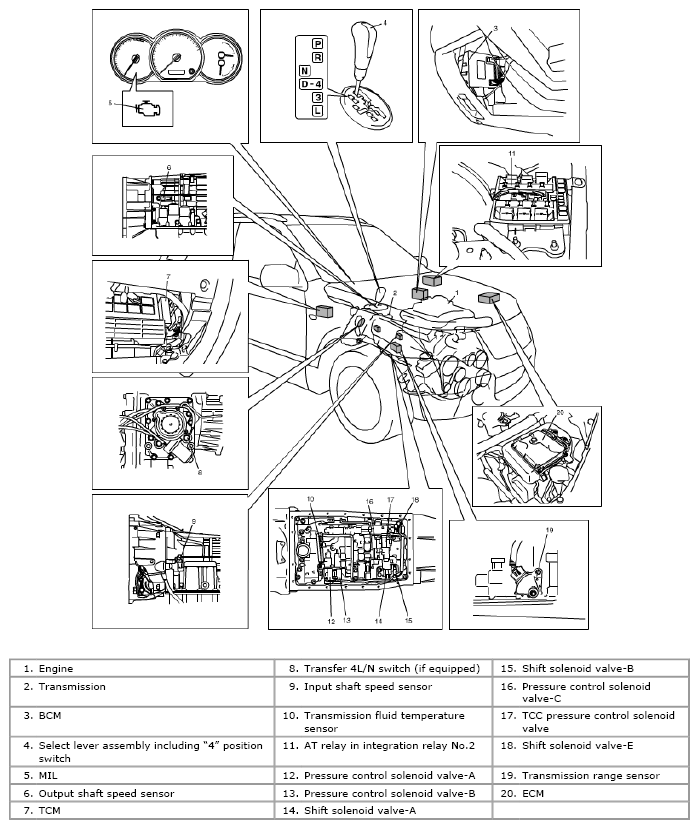

Fig 1: Identifying Electronic Shift Control System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
