Grand Vitara Base, AWD, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
General Description
›
Electronic Shift Control Input/Output Table
›

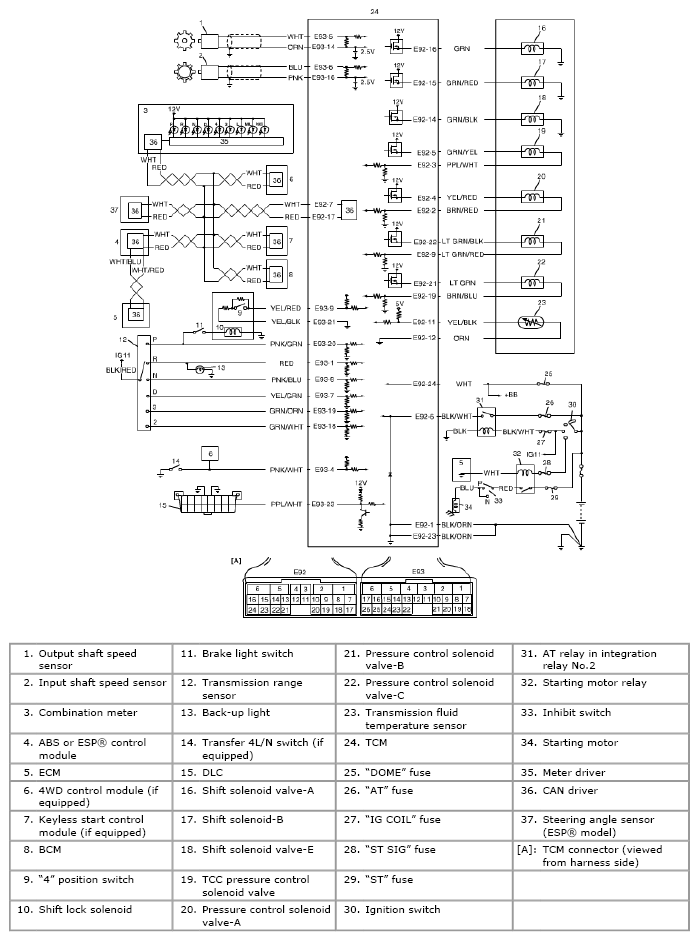

Electronic Shift Control System Wiring Diagram
Electronic Shift Control System Wiring Diagram
Fig 1: Identifying Electronic Shift Control System Wiring Diagram
