DTC U0073: Control Module Communication Bus Off
›
Wiring Diagram
DTC U0073: Control Module Communication Bus Off: Wiring Diagram

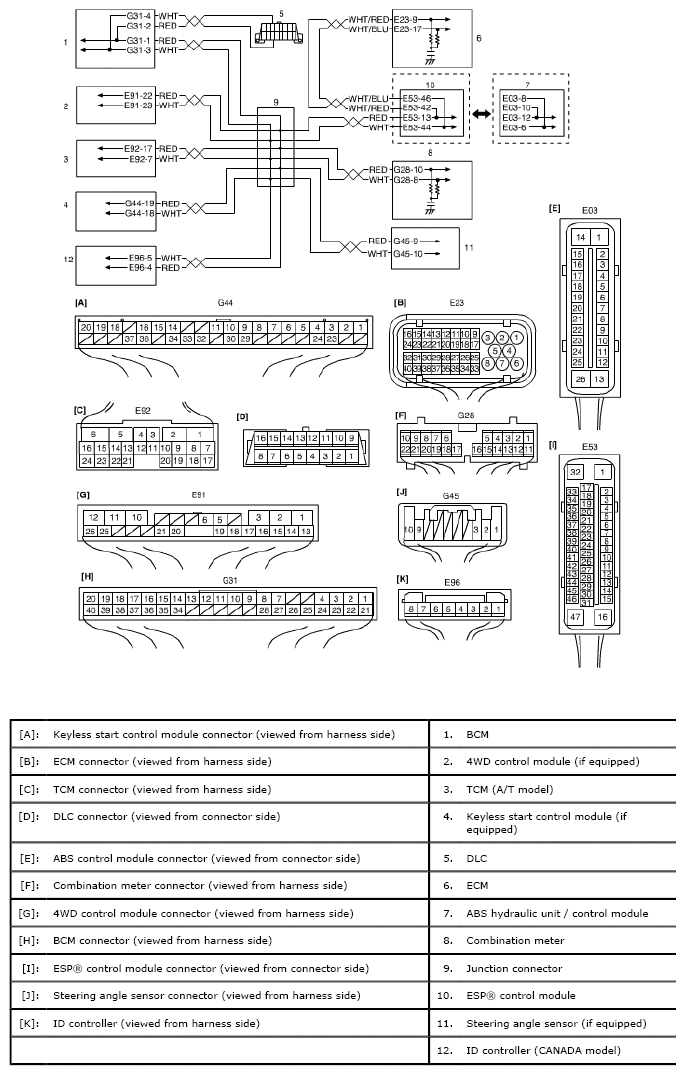

Fig 1: Control Module Communication Bus Off - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
