Automatic Transmission
›
Repair Instruction
›
Valve Body Components
Valve Body Components

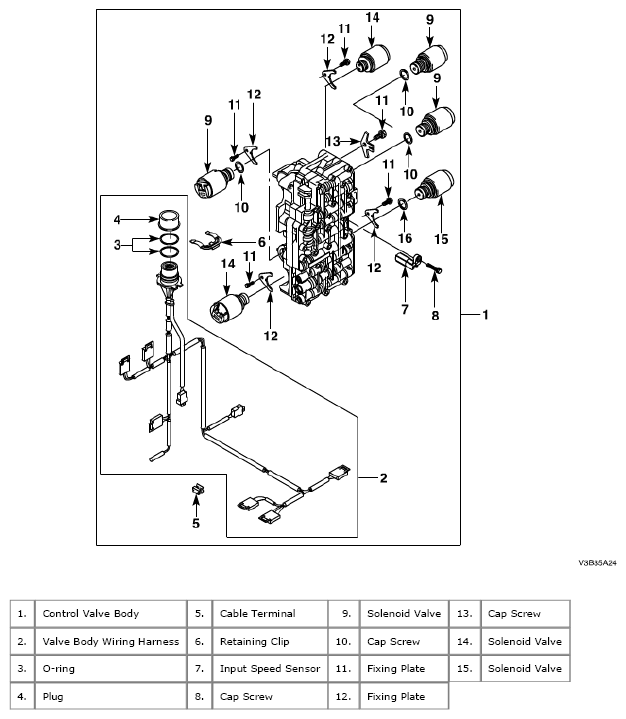

Fig 1: Exploded View Of Valve Body Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
