Shift Linkage Components
Shift Linkage Components

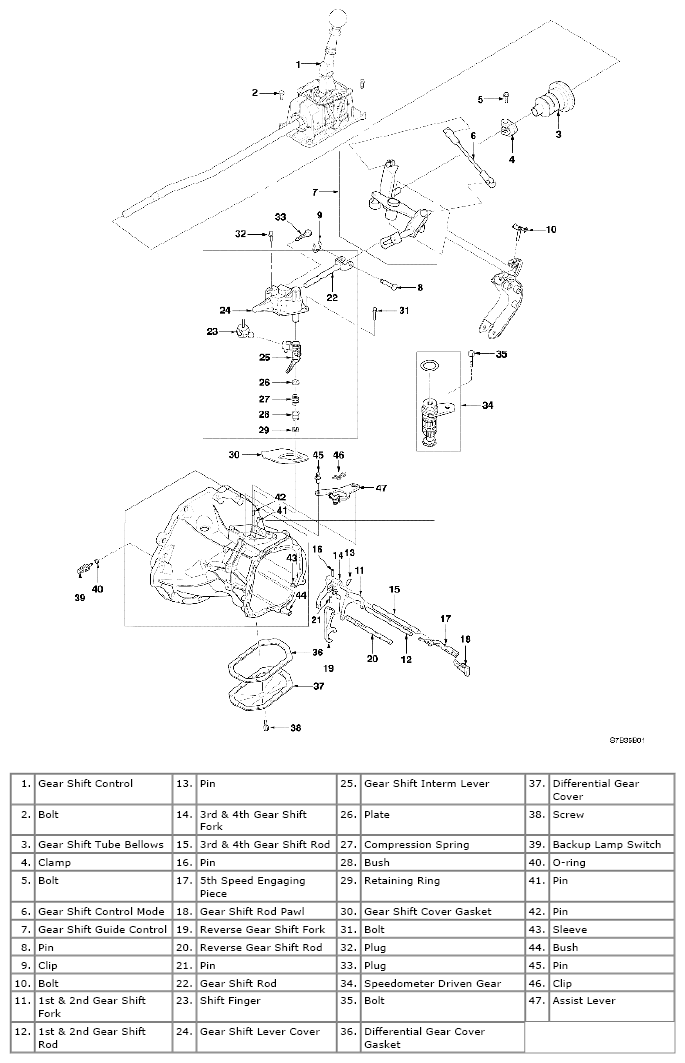

Fig 1: Exploded View Of Shift Linkage Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
