SX4 LE, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
Schematic and Routing Diagram
›
Transmission Control Module (TCM) Wiring Diagram
›
Notes
Transmission Control Module (TCM) Wiring Diagram: Notes

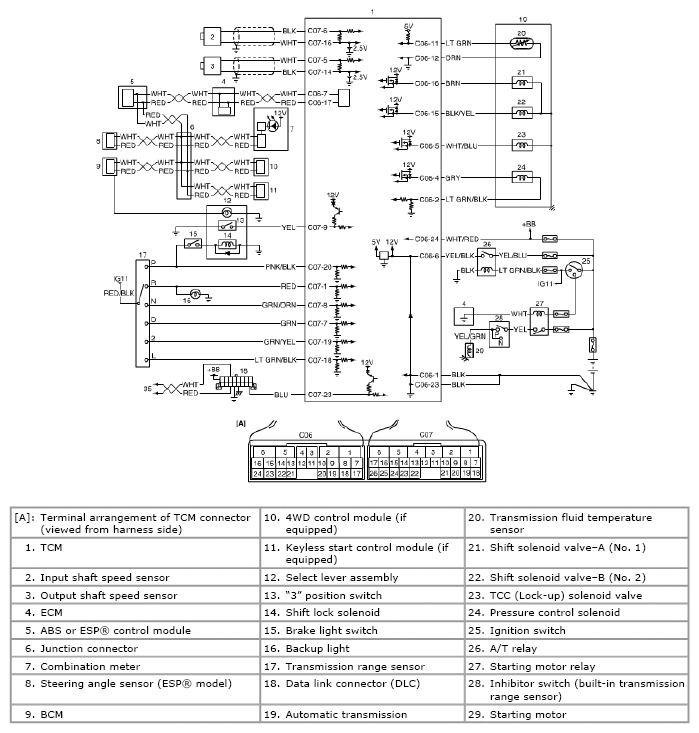

Fig 1: Identifying Transmission Control Module (TCM) Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
