Schematic and Routing Diagram
›
ECM Input / Output Circuit Diagram
›
Notes
ECM Input / Output Circuit Diagram: Notes

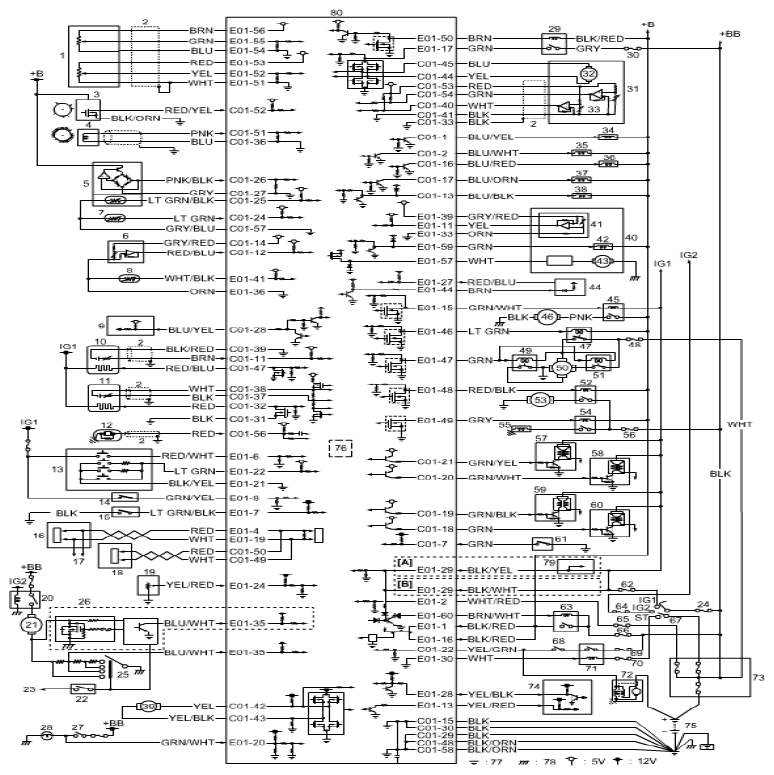

Fig 1: ECM Input / Output Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.

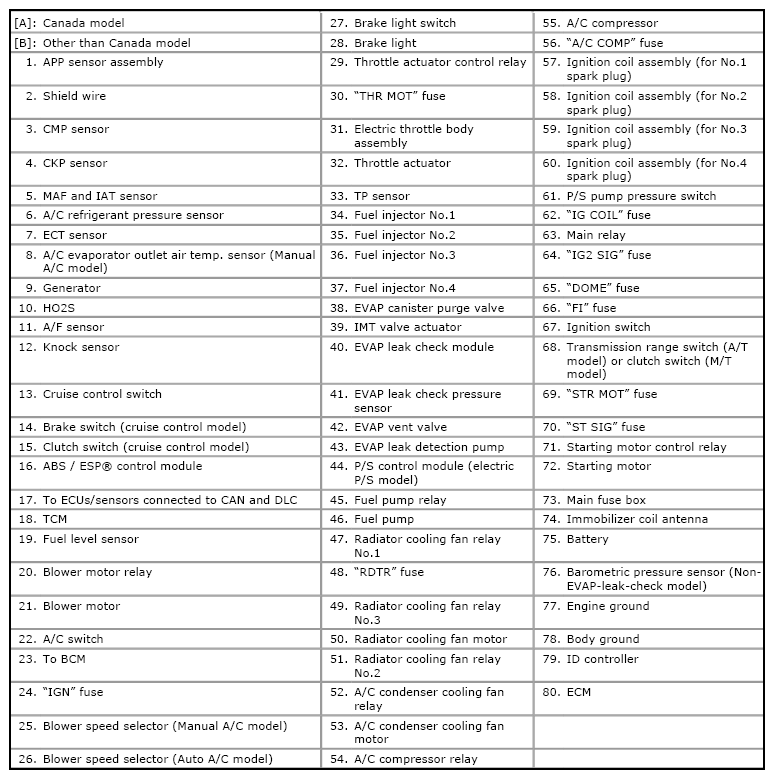

Fig 2: ECM Input / Output Circuit Legend
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
