Moveable Window Schematics
Moveable Window Schematics

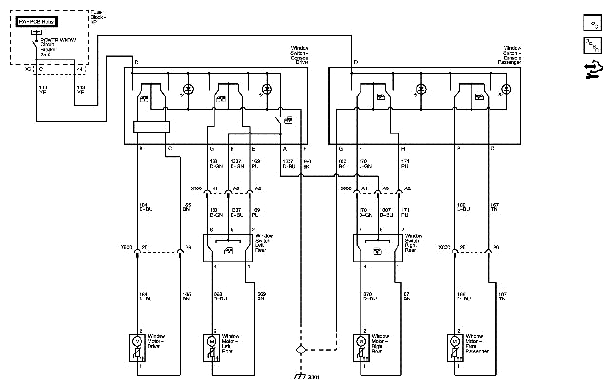

Fig 1: Moveable Window Schematic
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
