Automatic Transmission Electronic Component Views
Automatic Transmission Electronic Component Views

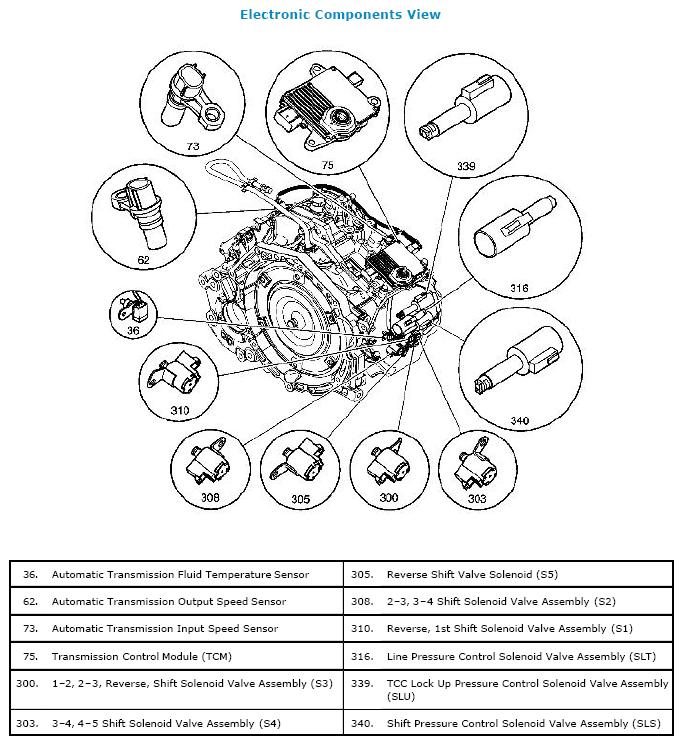

Fig 1: Identifying Automatic Transmission Electronic Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
