Removal Procedure

Remove the battery tray. refer to BATTERY TRAY REPLACEMENT .
Ensure that the shift control range select lever is in the park (P) position.

Fig 1: Identifying Shift Control Cable, Transaxle Range Switch Lever And Shift Control Cable Retainer Clip Tabs
Courtesy of SUZUKI OF AMERICA CORP.
Using the J 36346, disconnect the shift control cable (1) from the transaxle range switch lever (4).
Depress the shift control cable retainer clip tabs (2) and remove the shift control cable from the shift control cable bracket (3).

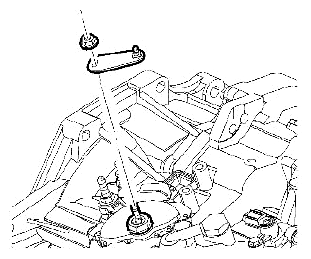

Fig 2: Identifying Transaxle Range Selector Lever Nut And Lever
Courtesy of SUZUKI OF AMERICA CORP.
Remove the transaxle range selector lever nut and lever.
