Removal Procedure

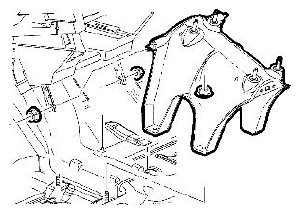

Fig 1: Identifying Transaxle Control Bracket And Bolts
G05469794Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the control assembly. refer to TRANSMISSION CONTROL REPLACEMENT  removal procedure in this section.
  2. Remove the transaxle control bracket and bolts.
