Installation Procedure

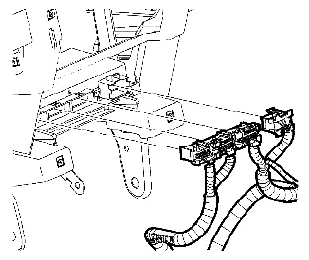

Fig 1: Identifying BCM Electrical Harnesses

Courtesy of SUZUKI OF AMERICA CORP.

Install the BCM.
Install the Instrument Panel Lower Brace Bezel. Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT .
Slide the BCM (1) tabs into the slots in the I/P retainer until the tabs lock into place.

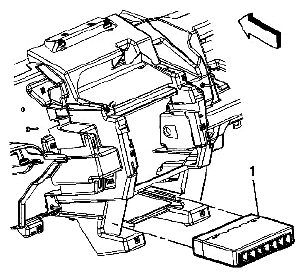

Fig 2: Identifying BCM
Courtesy of SUZUKI OF AMERICA CORP.
Connect the electrical connectors.
Program a new or a remanufactured BCM. Refer to CONTROL MODULE REFERENCES .
