Removal Procedure

Remove the front door upper trim panel extension. Refer to FRONT SIDE DOOR TRIM PANEL REPLACEMENT .

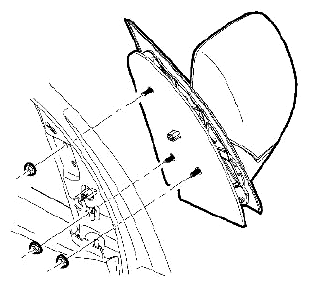

Fig 1: Removing Outside Rearview Mirror And Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the mirror electrical connector, if equipped.
Remove the mirror to door nuts.
Remove the mirror from the door.
