Front Wheel Speed Sensor Replacement

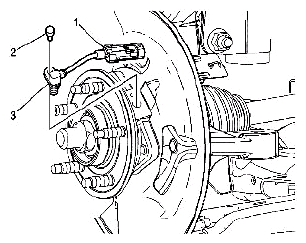

Fig 1: Identifying Wheel Speed Sensor Bolt And Electrical Connector From Bracket

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
WARNING: Refer to BRAKE DUST CAUTION . Preliminary Procedures  Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION . Remove the brake rotor. Refer to FRONT BRAKE ROTOR REPLACEMENT .
1	Wheel Speed Sensor Electrical Connector Procedure  Release the electrical connector from the bracket.
2	Wheel Speed Sensor Bolt CAUTION: Refer to FASTENER NOTICE . Tightening torque  8 N.m (71 lb in)
3	Wheel Speed Sensor Procedure  Route the wheel speed sensor electrical harness through the splash shield.
