Automatic Transmission Shift Lock Control Solenoid

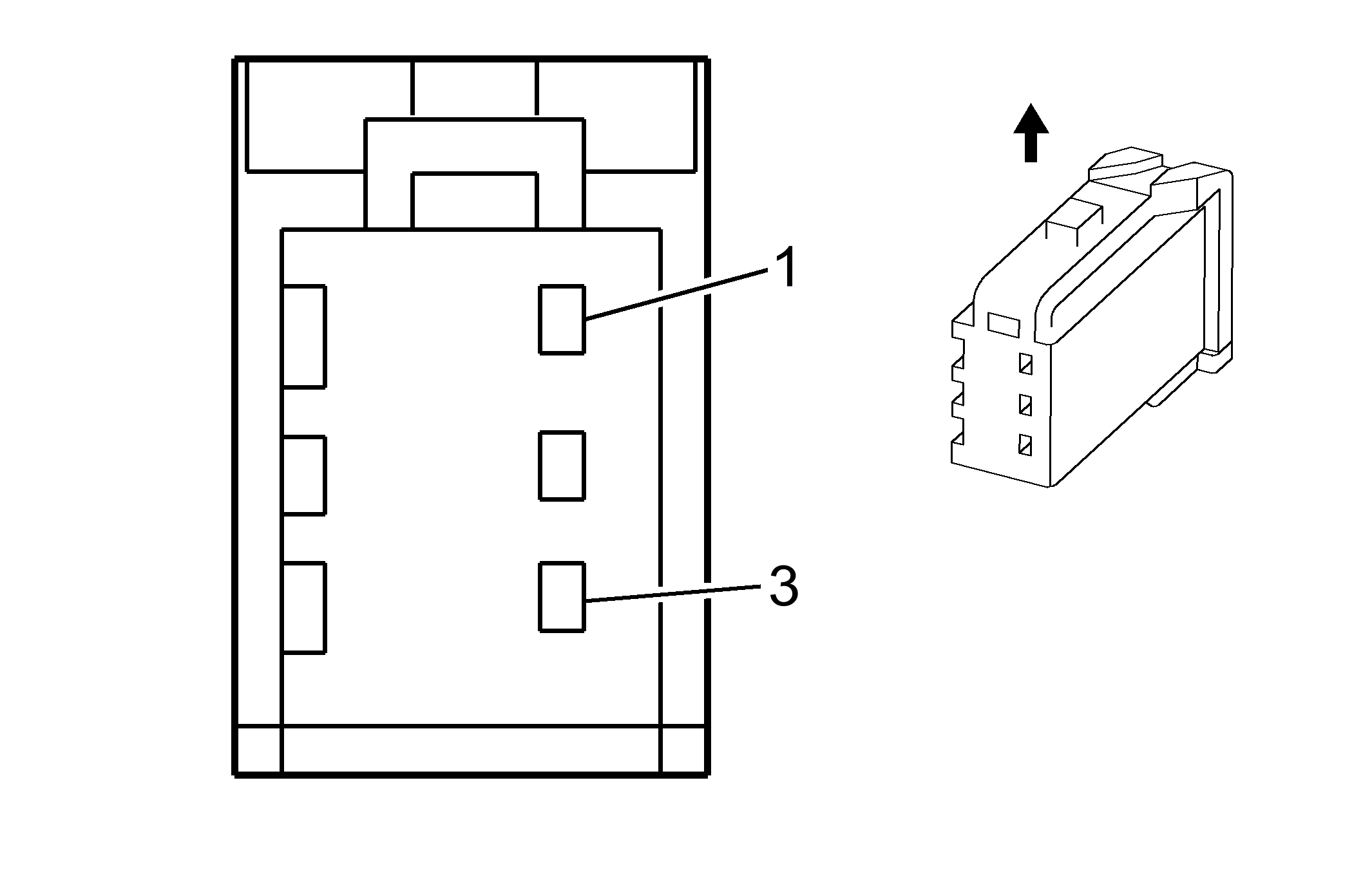

Fig 1: Identifying Automatic Transmission Shift Lock Control Solenoid Connector End View

Courtesy of GENERAL MOTORS CORP.

Automatic Transmission Shift Lock Control Solenoid

Pin	Wire	Circuit	Function
1	0.35 D-GN/WH	1135	Automatic Transmission Shift Lock Solenoid Supply Voltage
2	-	-	Not Used
3	0.35 BK	1450	Ground

Connector Part Information  OEM: 90000223 Service: See Catalog Description: 3-Way F (WH)
