Installation Procedure

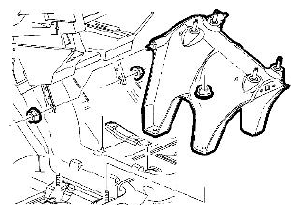

Fig 1: Identifying Transaxle Control Bracket And Bolts
G05469795Courtesy of SUZUKI OF AMERICA CORP.
  1. Install the transaxle control bracket.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the transaxle control bracket bolts.

    Tightening torque

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the control assembly. refer to TRANSMISSION CONTROL REPLACEMENT  installation procedure in this section.
