Power Window System: Component Parts Location
Power Window System: Component Parts Location

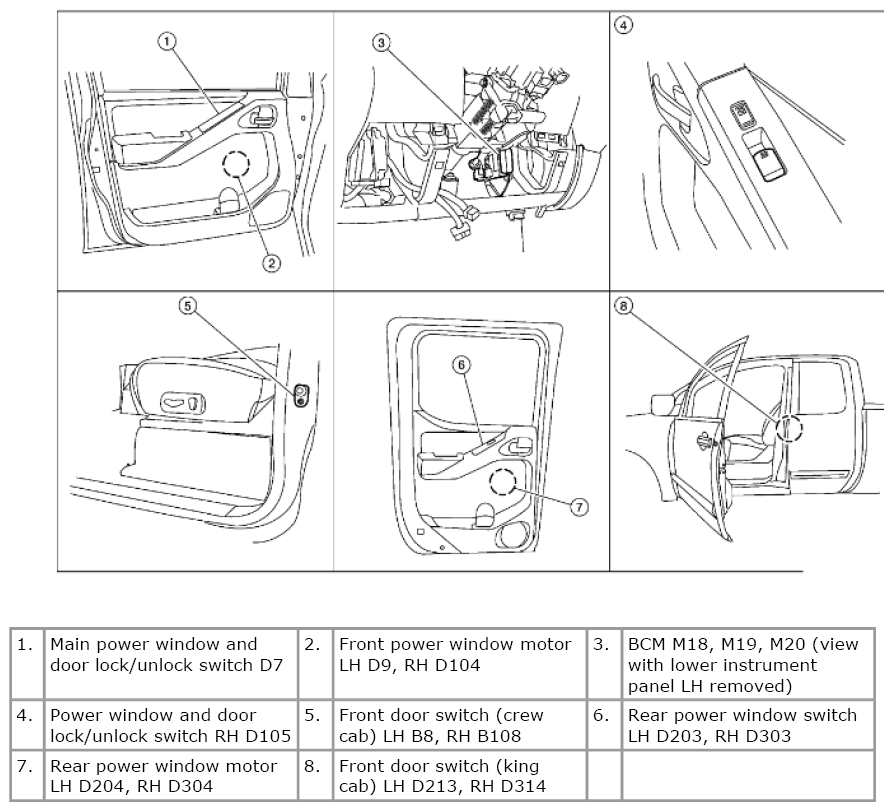

Fig 1: Identifying Power Window System Component Parts Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
