Mode 6 - SUZUKI: XL7

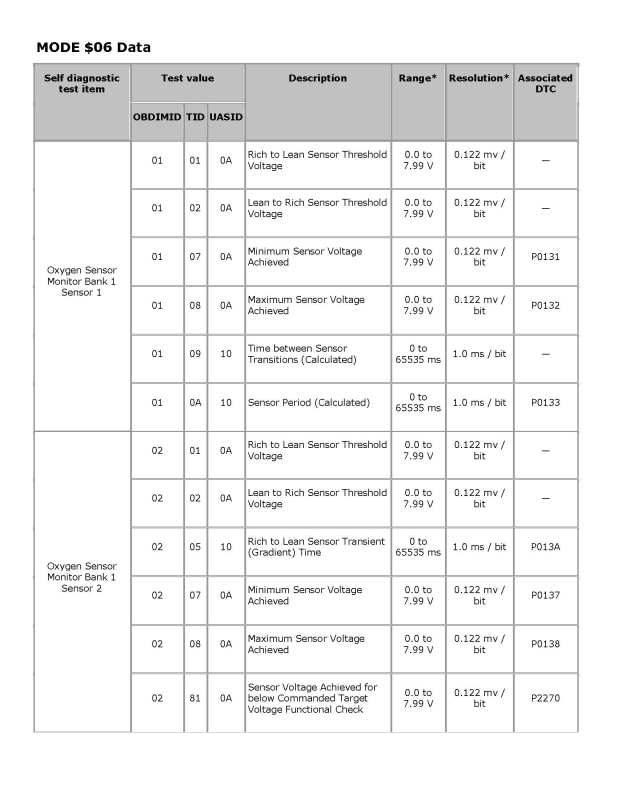

Fig 1: Mode $06 Data For XL7 (1 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Mode $06 Data For XL7 (2 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

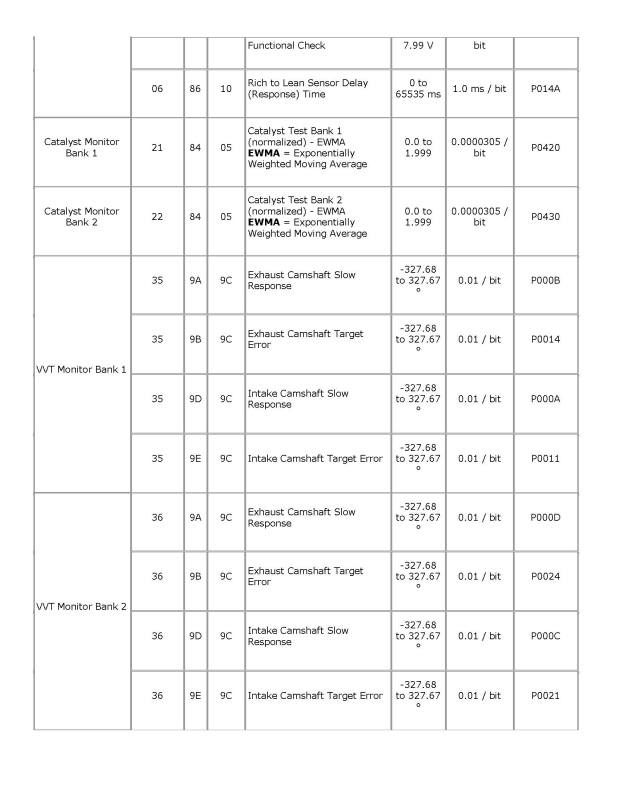

Fig 3: Mode $06 Data For XL7 (3 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

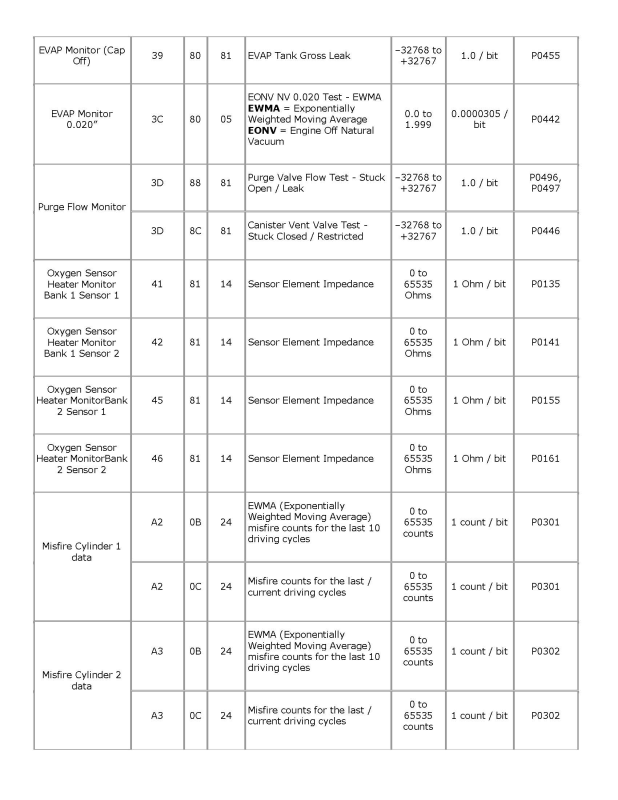

Fig 4: Mode $06 Data For XL7 (4 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

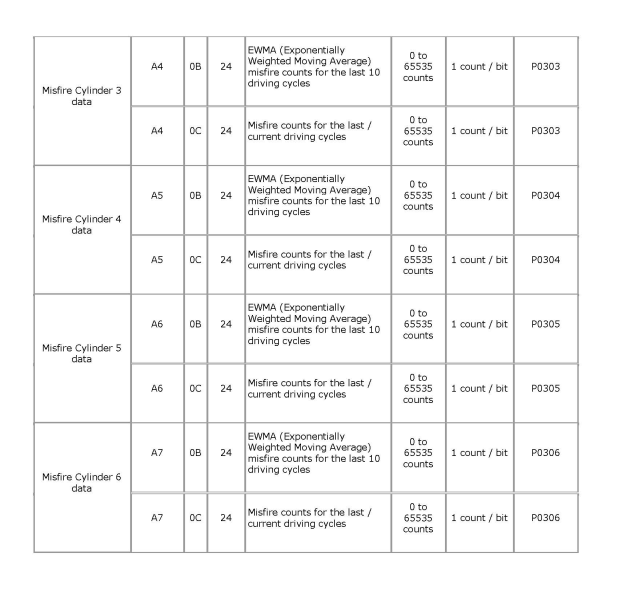

Fig 5: Mode $06 Data For XL7 (5 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
