Engine Control System (VQ40DE) - (1 Of 5)
›
Schematic and Routing Diagram
›
Engine Control System: System Diagram
Engine Control System: System Diagram

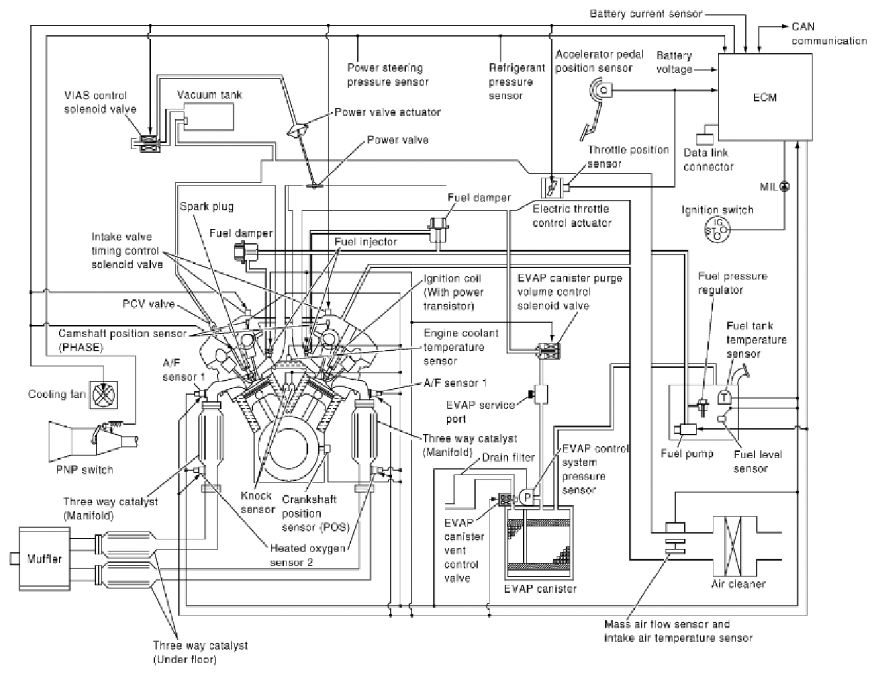

Fig 1: Engine Control System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
