Intake Air Temperature Sensor

Check resistance between intake air temperature sensor (1) terminals 5 and 6 under the following conditions.

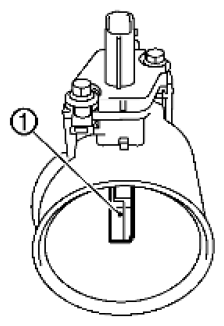

Fig 1: Identifying Intake Air Temperature Sensor

Courtesy of SUZUKI OF AMERICA CORP.

INTAKE AIR TEMPERATURE SPECIFICATION

Intake air temperature °C (°F)	Resistance kΩ
25 (77)	1.800 - 2.200

If NG, replace mass air flow sensor (with intake air temperature sensor).

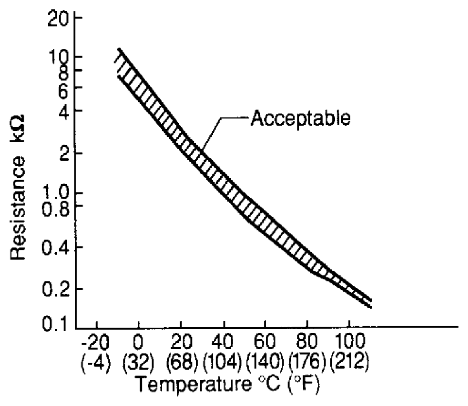

Fig 2: Intake Air Temperature Sensor Graph
Courtesy of SUZUKI OF AMERICA CORP.
