Spark Plug Exploded View [QR25DE]
Spark Plug Exploded View [QR25DE]

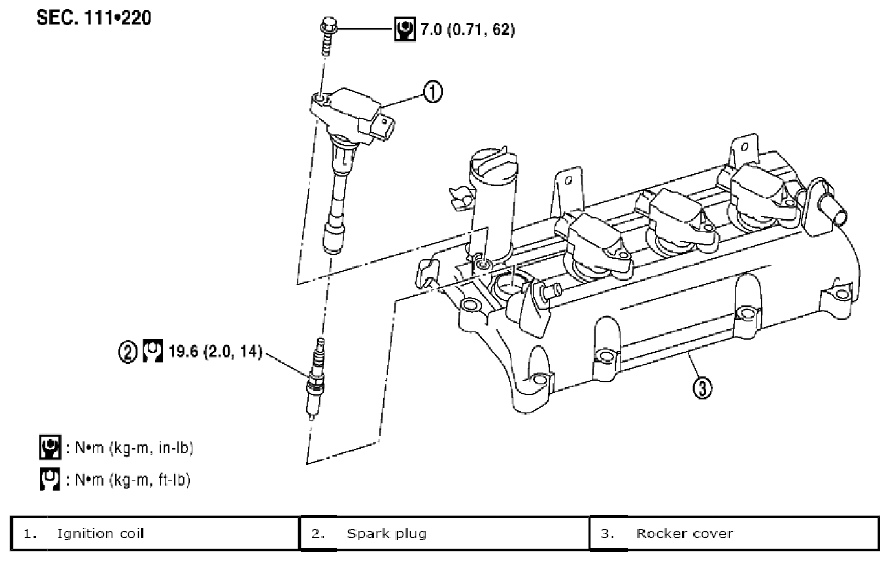

Fig 1: Exploded View Of Spark Plug [QR25DE]
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
