Electronic Stability Program Schematic

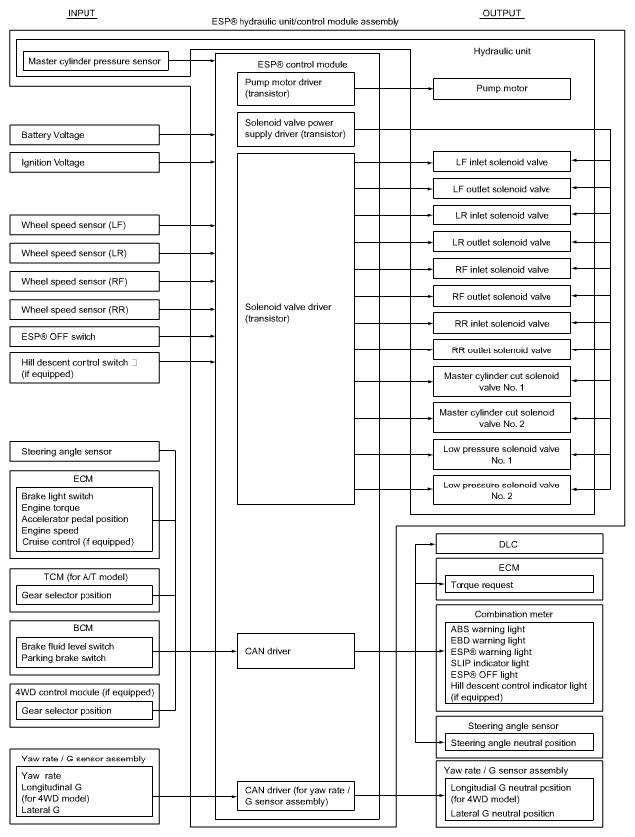

Fig 1: Electronic Stability Program Schematic Diagram
G06498498Courtesy of SUZUKI OF AMERICA CORP.
