Generator Components: N32A

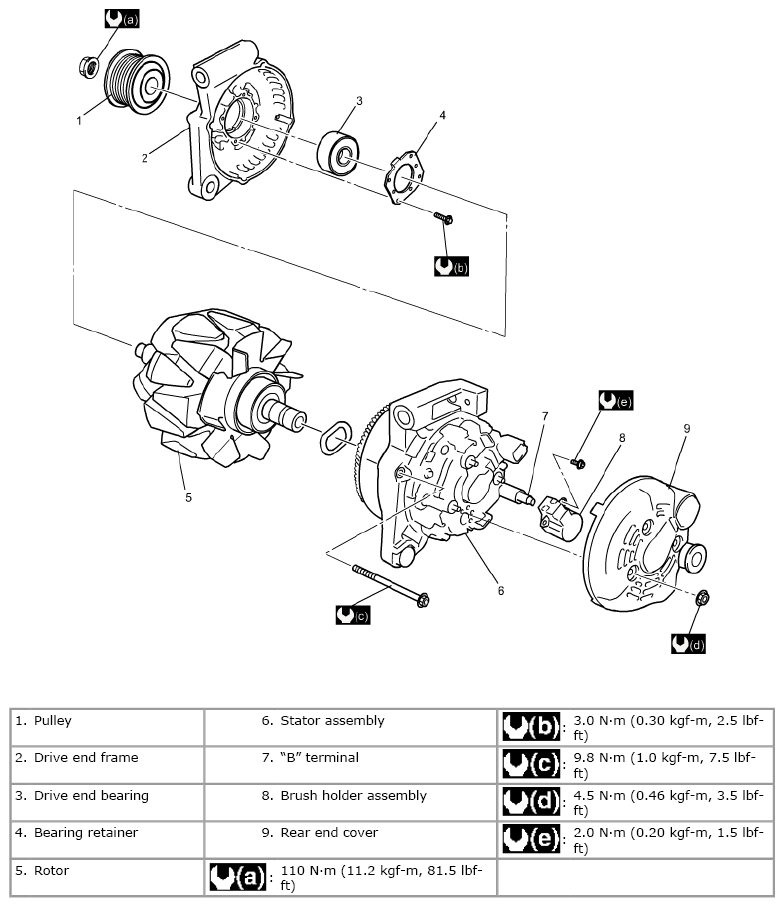

Fig 1: Generator Replacement Components With Torque Specifications (N32A)
G06493569Courtesy of SUZUKI OF AMERICA CORP.
