P/S Pump Components
P/S Pump Components

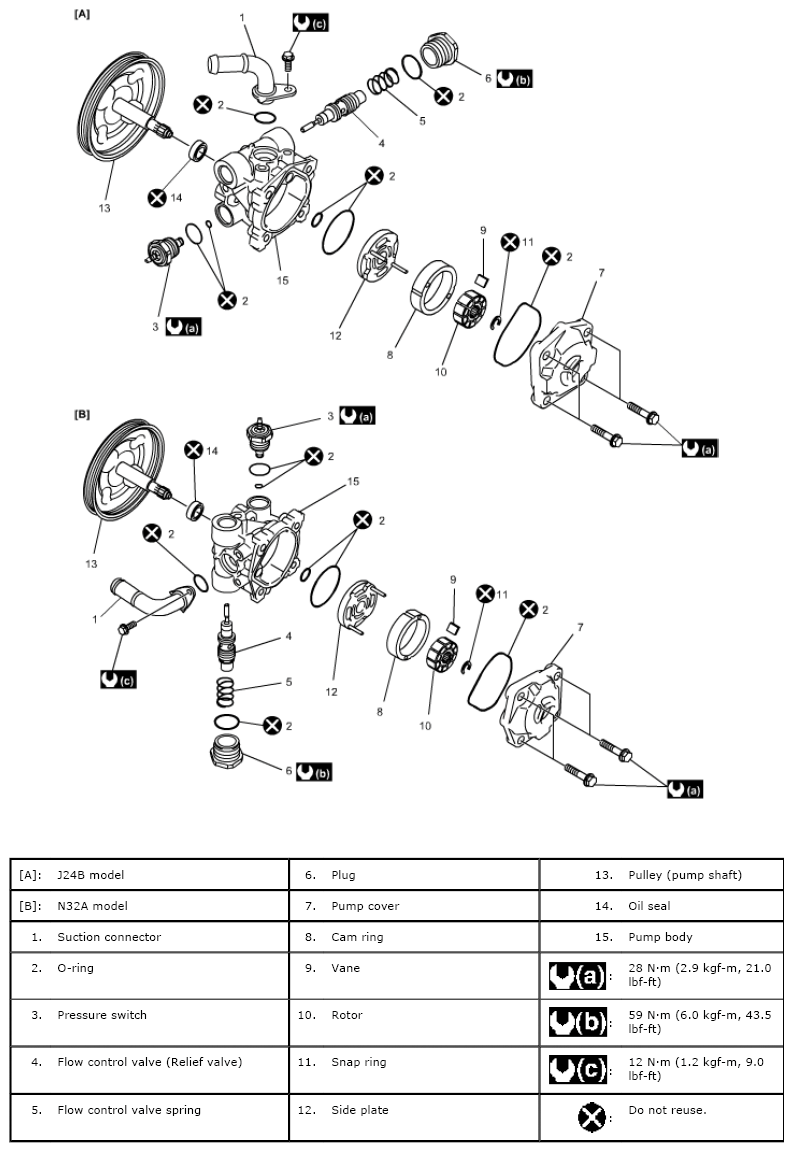

Fig 1: Identifying P/S Pump Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
