Oil Pump Components
Oil Pump Components

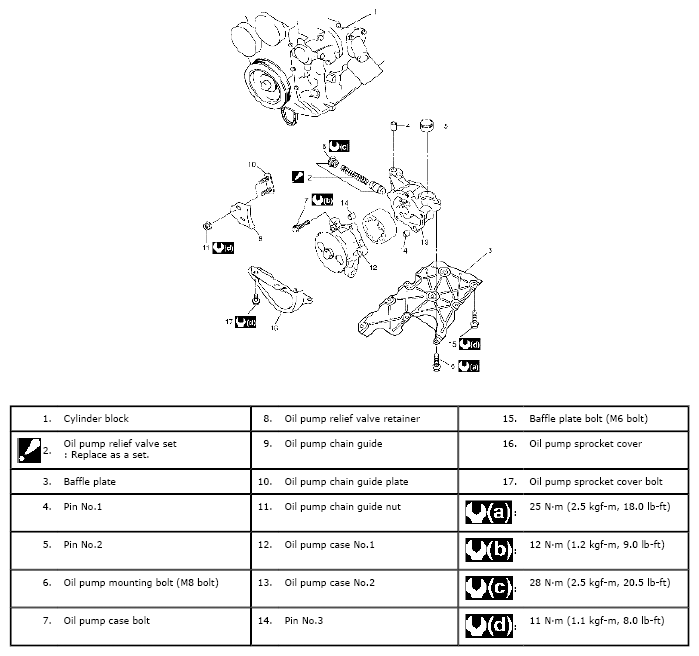

Fig 1: Oil Pump Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
