Automatic Transmission
›
General Description
›
Clutch/Brake/Planetary Gear Function of Automatic Transaxle
›
Notes
Clutch/Brake/Planetary Gear Function of Automatic Transaxle: Notes

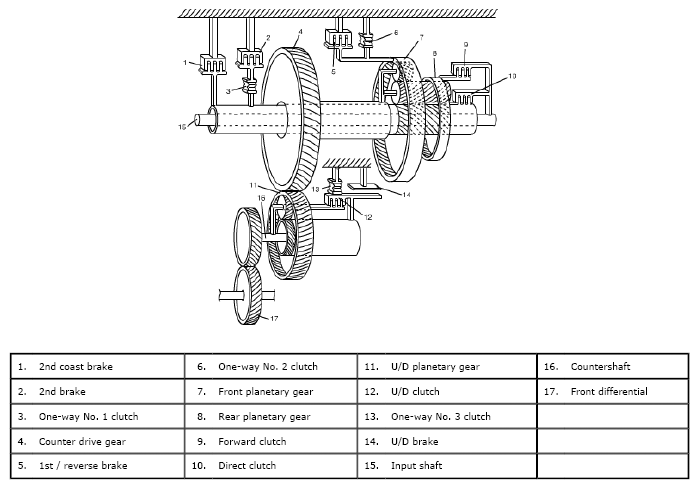

Fig 1: Planetary Gear Function Of Automatic Transaxle
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
