Transaxle Rear Cover Components
Transaxle Rear Cover Components

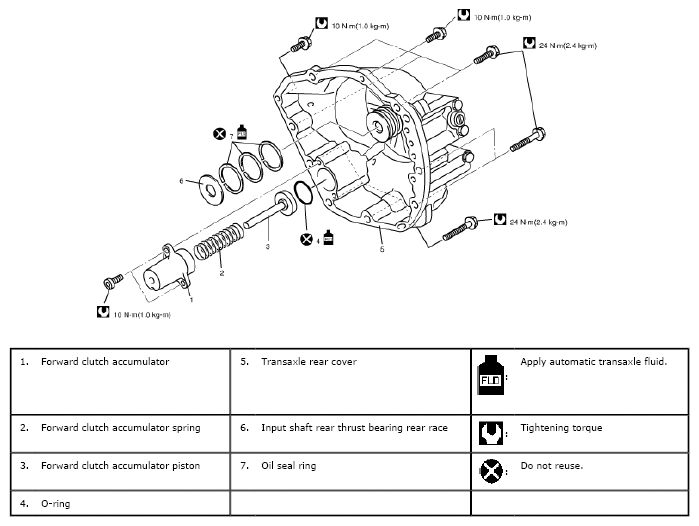

Fig 1: Exploded View Of Transaxle Rear Cover Components (With Torque Specifications)
Courtesy of SUZUKI OF AMERICA CORP.
