Differential Components
Differential Components

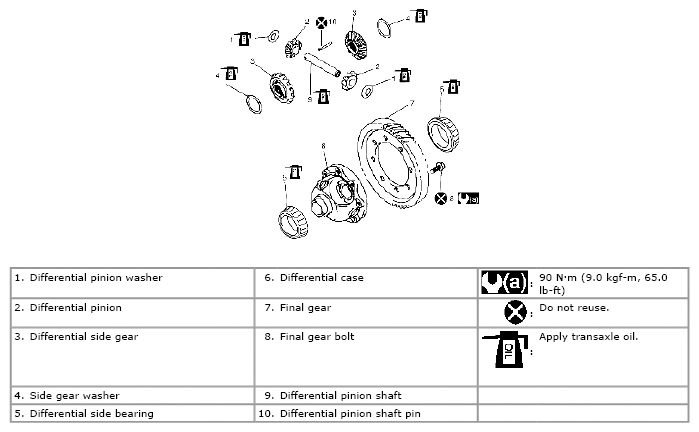

Fig 1: Identifying Differential Components With Tightening Torques
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
