Transmission Control Bracket Replacement

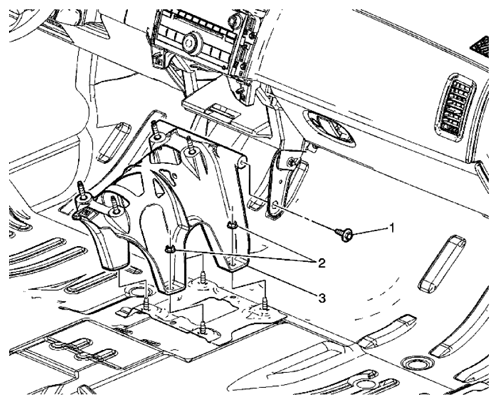

Fig 1: Identifying Transmission Control Bracket

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedures  Disable the supplemental inflatable restraint (SIR) system. Refer to SIR DISABLING AND ENABLING . Remove the shift control lever knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT . Remove the console. Refer to CONSOLE REPLACEMENT . Remove the shift control. Refer to TRANSMISSION CONTROL REPLACEMENT .
1	Shift Control Bracket Bolt (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque  25 N.m (18 lb ft)
2	Shift Control Bracket Nut (Qty: 4) Tightening torque  25 N.m (18 lb ft)
3	Shift Control Bracket
