General Description
›
4WD System: System Description
›
4WD Shift Switch And Indicator Lamp
›
Notes
4WD Shift Switch And Indicator Lamp: Notes

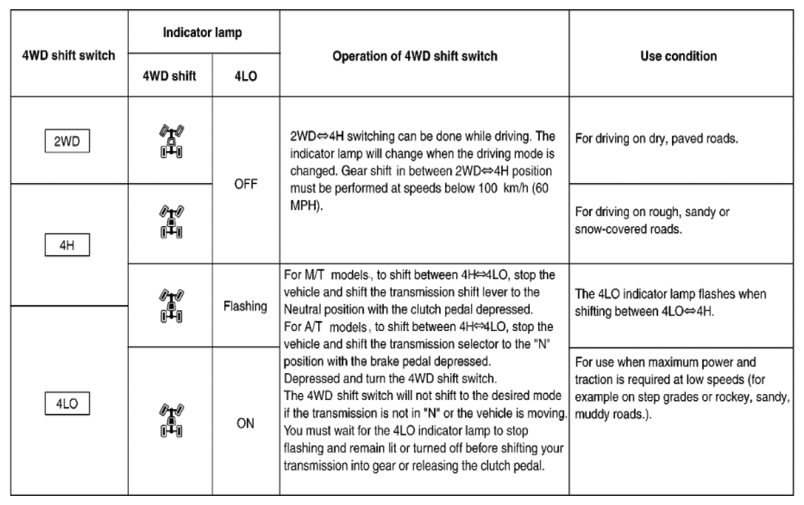

Fig 1: 4WD Shift Switch And Indicator Lamp Specification Chart
Courtesy of SUZUKI OF AMERICA CORP.
