Exhaust System Components

WARNING: To avoid getting burned, do not work on exhaust system when it is hot. Exhaust system must be completely cool before beginning any service on it.

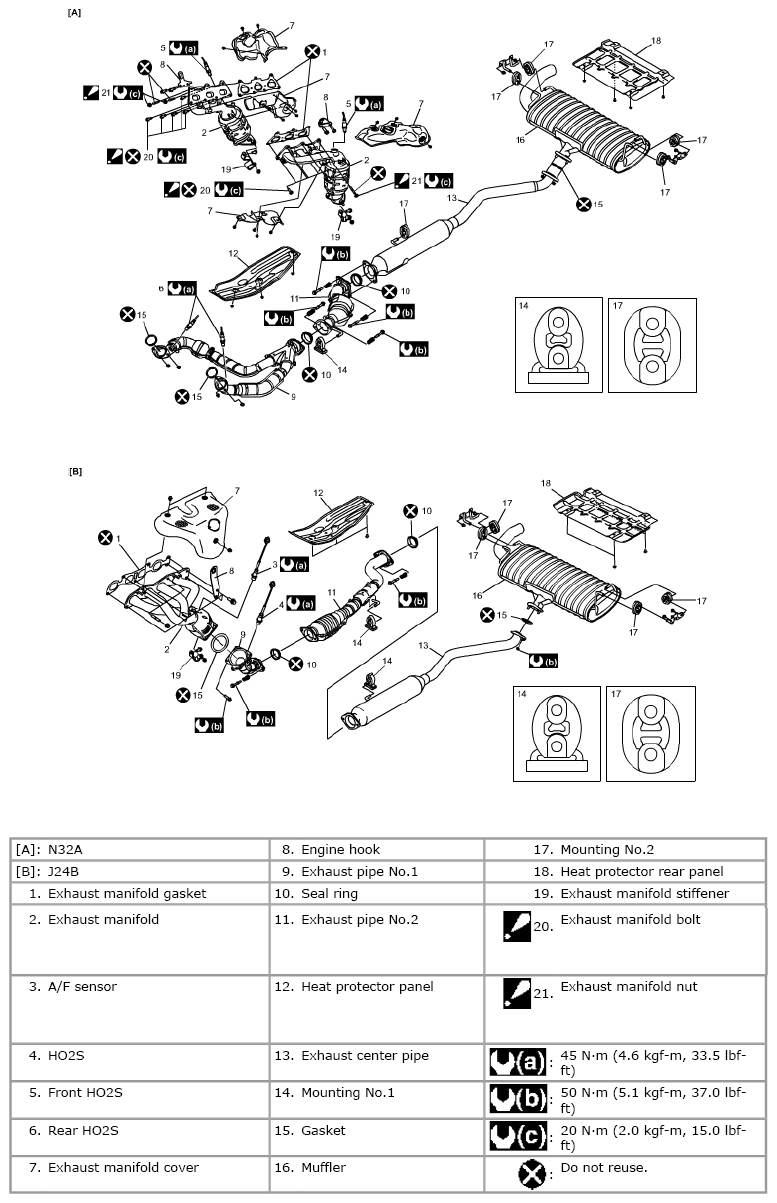

Fig 1: Exhaust System Replacement Components With Torque Specifications
G06493581Courtesy of SUZUKI OF AMERICA CORP.

20. and 21.:  For tightening order see EXHAUST MANIFOLD REMOVAL AND INSTALLATION (N32A)
