Electronic Shift Control System Component Location
Electronic Shift Control System Component Location

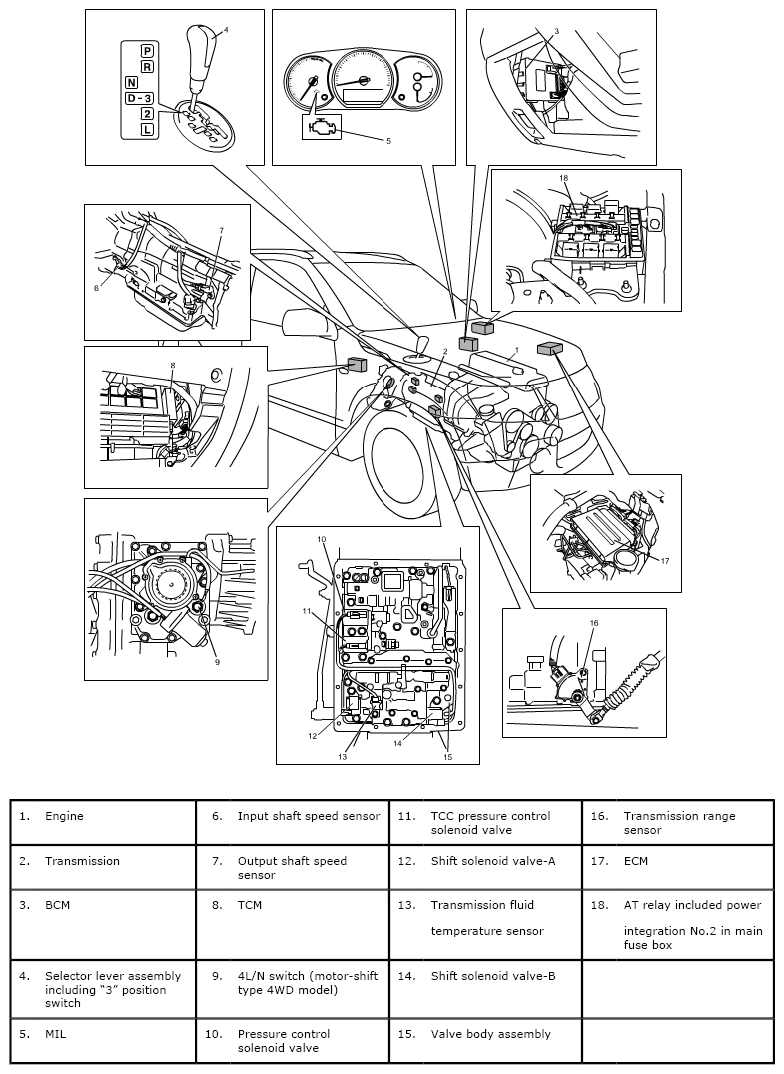

Fig 1: Identifying Electronic Shift Control System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
