General Description
›
Electronic Shift Control Input/Output Table
Electronic Shift Control Input/Output Table

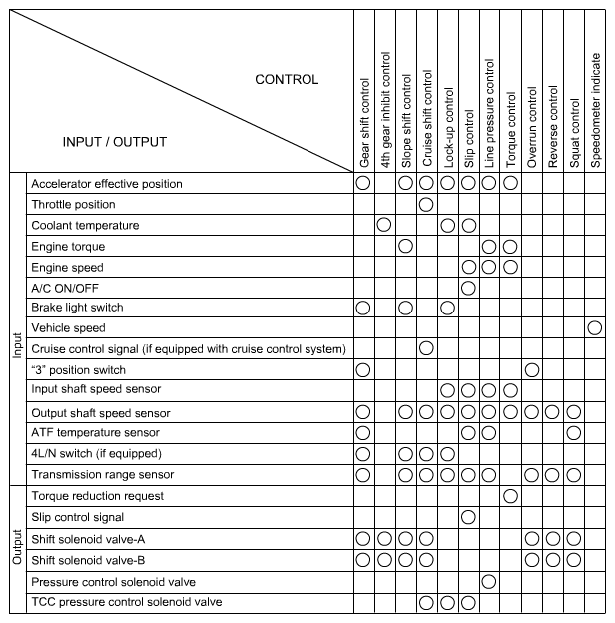

Fig 1: Electronic Shift Control Input/Output Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
