Manual Selector Assembly Components
Manual Selector Assembly Components

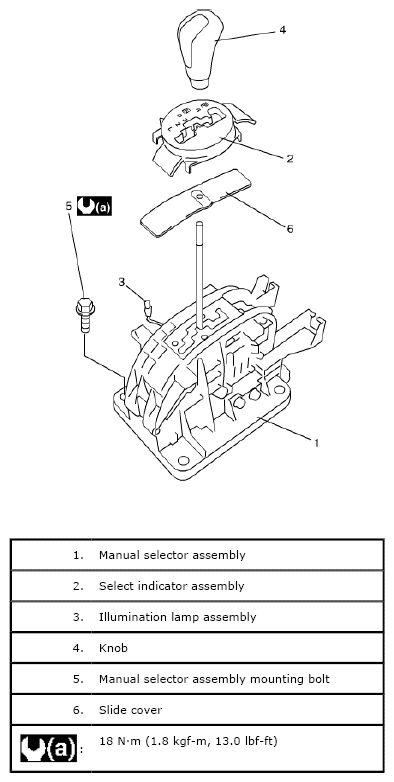

Fig 1: Manual Selector Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
