Select Cable Components

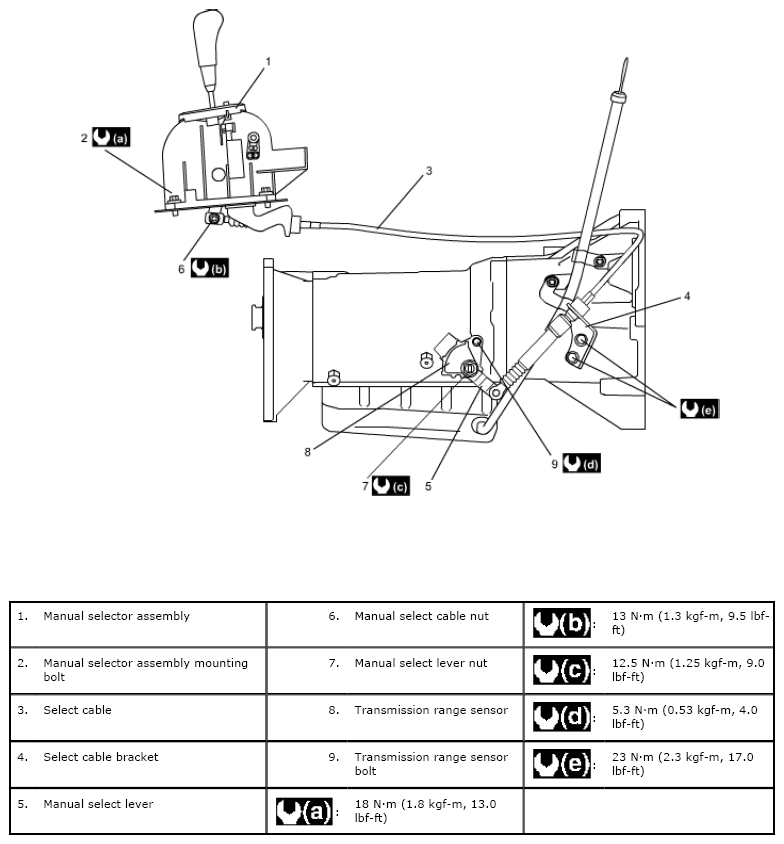

Fig 1: Select Cable Replacement Components With Torque Specifications
G06498574Courtesy of SUZUKI OF AMERICA CORP.
