Continuously Variable Transaxle (CVT)
›
Repair Instructions
›
CVT Assembly Components
CVT Assembly Components

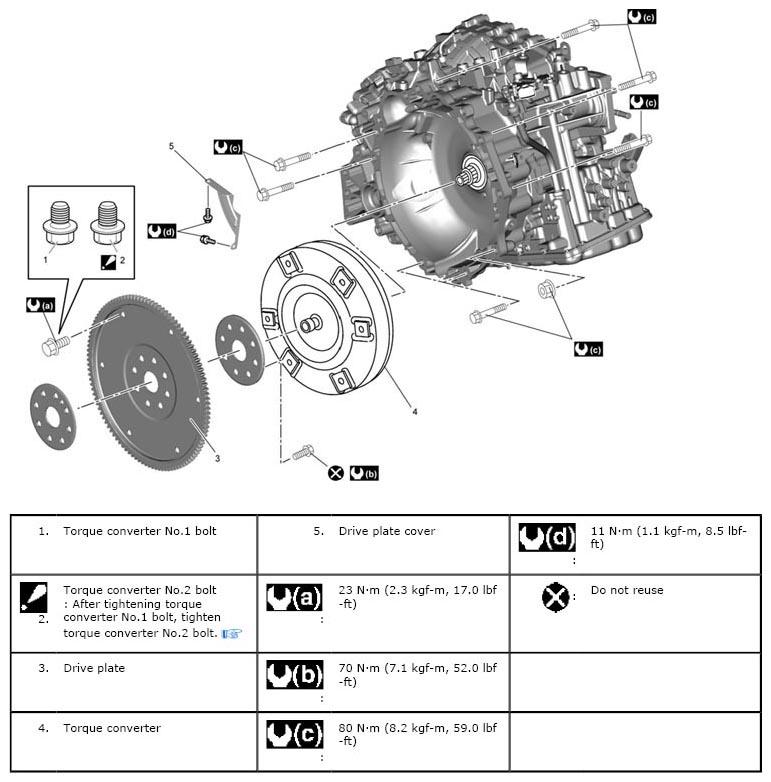

Fig 1: Identifying CVT Assembly Components (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

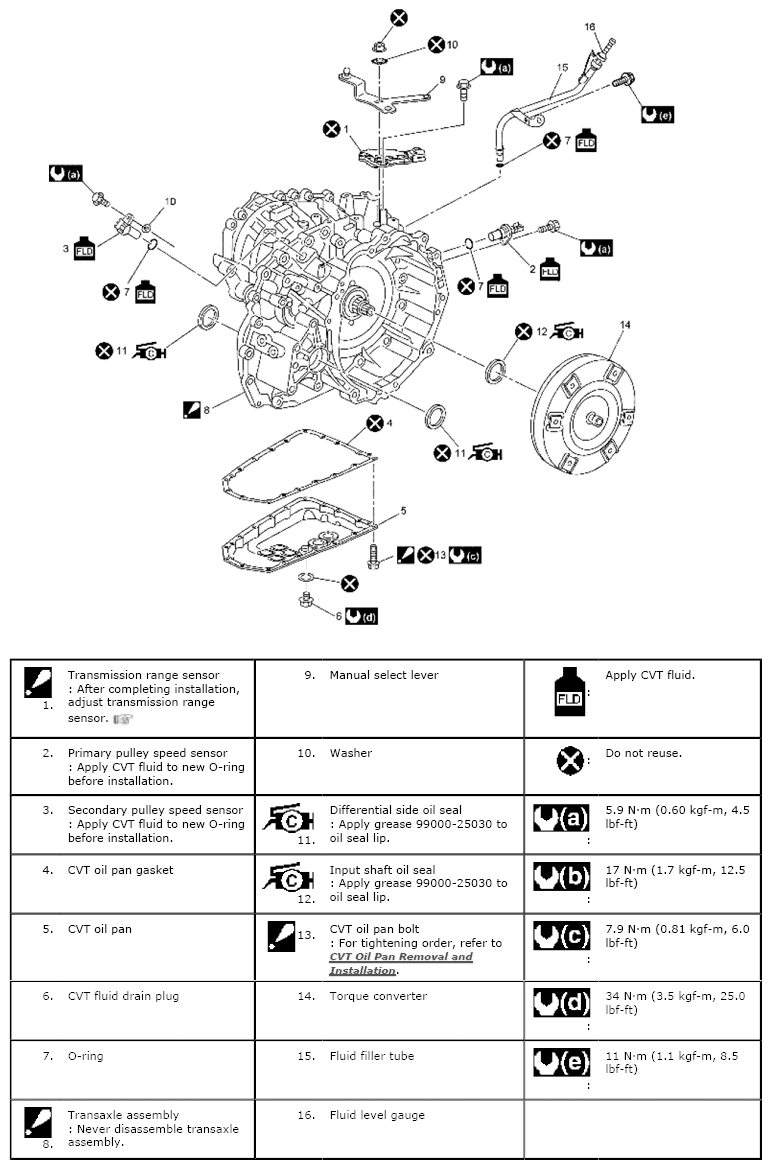

Fig 2: Identifying CVT Assembly Components (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
