Rear Door Lock: Component Structure

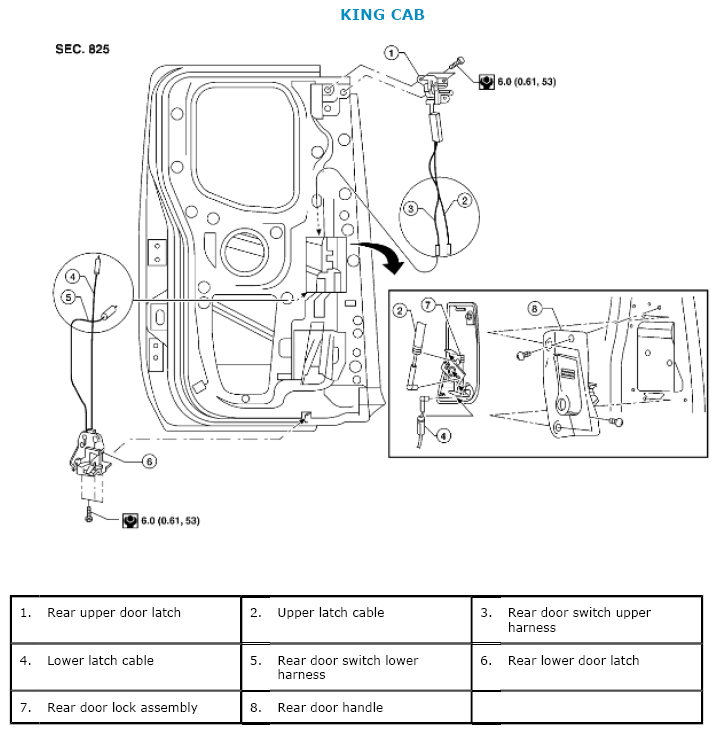

Fig 1: Identifying Rear Door Lock Component - King Cab

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Rear Door Lock Component - Crew Cab

Courtesy of SUZUKI OF AMERICA CORP.
