Ground Point
›
Ground Distribution
›
Engine Control Harness (VQ40DE Models)
Engine Control Harness (VQ40DE Models)

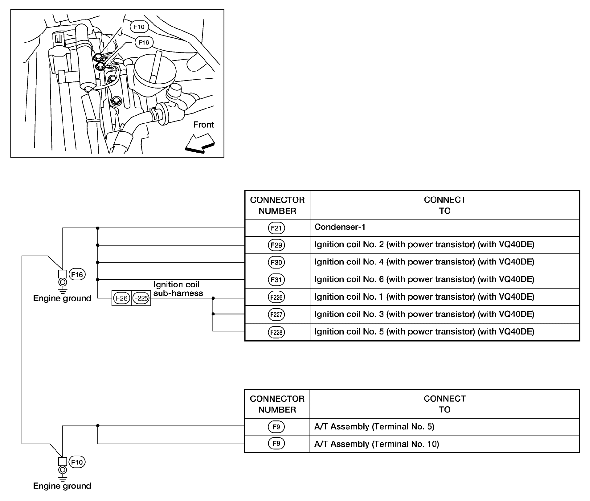

Fig 1: Identifying Ground Distribution - Engine Control Harness (VQ40DE Models)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
