Work Flow

WARNING: This page is about a different variant/trim than selected.

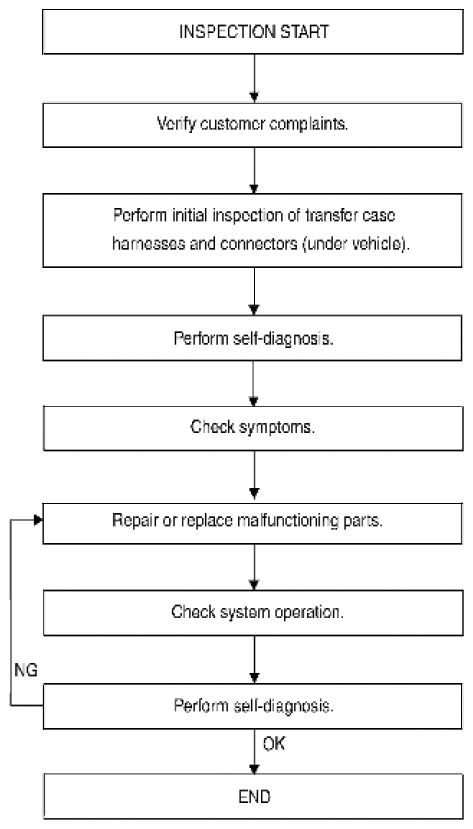

Fig 1: Work Flow Chart
G06444736Courtesy of SUZUKI OF AMERICA CORP.
