Power Transfer Diagram

WARNING: This page is about a different variant/trim than selected.

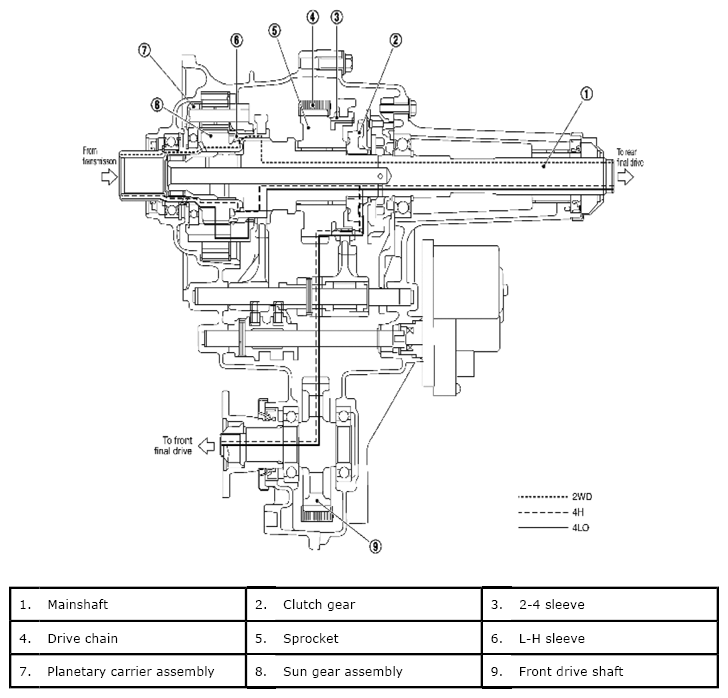

Fig 1: 4WD System Power Transfer Diagram
G06444732Courtesy of SUZUKI OF AMERICA CORP.
